Accurate measurements are crucial when installing windows in new construction projects to ensure a proper fit and seamless integration into the building envelope.
From determining the dimensions of the rough opening to accounting for any variations in wall thickness and framing materials, precise measurements are essential for selecting the right size and style of windows.
In this comprehensive guide, we’ll delve into the step-by-step process of how to measure for windows new construction, covering everything from assessing the framing conditions to accounting for any architectural details or design considerations.
By mastering the art of measuring for windows, you can streamline the installation process, minimize errors, and achieve optimal performance and aesthetics in your new construction project.
Whether you’re a seasoned contractor or a DIY enthusiast, understanding how to measure for windows accurately is a fundamental skill that can elevate the quality and efficiency of your building endeavors.
Importance of Accurate Window Measurements
Accurate window measurements are indispensable in the success of new construction projects. They are the linchpin that ensures windows not only fit perfectly but also perform their intended functions without fault.
Failure to measure windows accurately can lead to a plethora of issues, such as gaps that compromise the building’s insulation, difficulty in operating the windows, or even structural weaknesses that may necessitate costly adjustments or replacements.
Precise measurements influence the efficiency of energy use within the building, affecting both heating and cooling costs.
Additionally, windows that are measured and hence installed correctly contribute significantly to the aesthetic appeal and overall value of the property.
It’s a meticulous step that cannot be overlooked if one aims for a seamless blend of functionality, efficiency, and design in new construction projects.
Understanding Window Measurements
When it comes to measuring for new construction windows, it’s essential to grasp the two primary dimensions – the rough opening and the actual window size.
The rough opening is the framed opening in a wall where a window will be installed, typically measured before the installation of the window itself. It should be slightly larger than the window to accommodate any necessary shims for a level fit and to ensure easy installation without damaging the window frame.
On the other hand, the actual window size refers to the dimensions of the window unit itself. Manufacturers often list these dimensions in their product specifications, and it’s crucial to compare them against the measurements of the rough opening to ensure a precise fit.
The difference between the rough opening and the actual window size is critical for creating a snug fit that doesn’t allow air or moisture ingress but still provides enough room for proper installation and operation.
In addition to these critical measurements, consideration should also be given to the window’s style and operational type as these factors can influence the size and shape of the required opening.
For instance, a casement window may require different clearance around the frame compared to a double-hung window due to the way it operates.
Understanding the nuances of window measurements is vital in selecting the right product that will fit correctly, function as intended, and provide the desired look and energy efficiency for a new construction project.
Different Types of Windows and Their Measurement Considerations

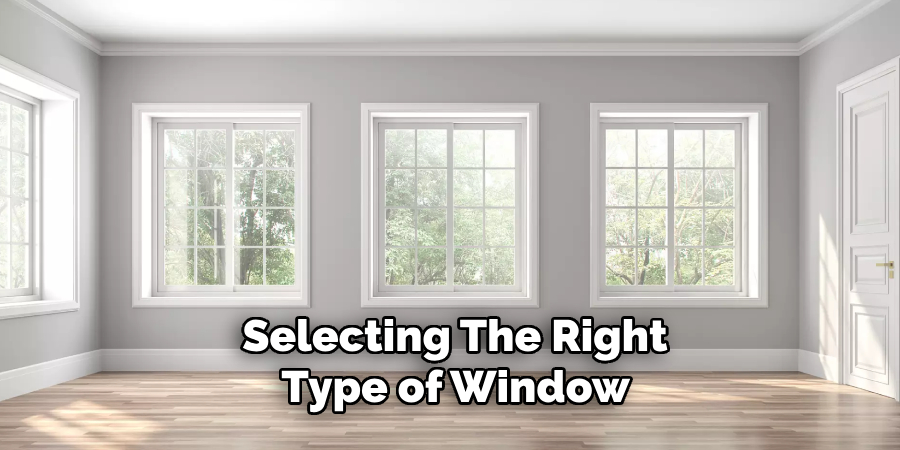

Selecting the right type of window for a new construction project involves more than just aesthetic preference; it requires understanding the unique measurement considerations associated with each style.
Here’s a rundown of common window types and the specific aspects you should keep in mind when measuring for them:
Double-Hung Windows
Double-hung windows are characterized by two sashes that move vertically within the frame.
When measuring for double-hung windows, it’s important to ensure the height allows for both sashes to operate smoothly without interference. Consideration should also be given to the window’s weight and balance system, which can affect the framing supports required.
Casement Windows
Casement windows hinge at the side and swing outward. Since they open like a door, ensure there’s adequate clearance around the window’s perimeter for full operation.
Measurements must account for the space needed for the crank mechanism to operate freely without hitting interior walls or fixtures.
Sliding Windows
Sliding windows open horizontally along a track. The key measurement consideration for sliding windows is the track length, which will dictate the overall width of the opening.
It’s also vital to account for a slight elevation off the ground to prevent water ingress and to ensure smooth operation over time.
Bay and Bow Windows
Bay and bow windows extend outward from the building, creating a protruding alcove.
These windows require precise measurements not only of the individual window units but also of the angles at which they will be set. Structural support considerations are paramount, as these windows can be heavy and impact the building’s facade.
Picture Windows

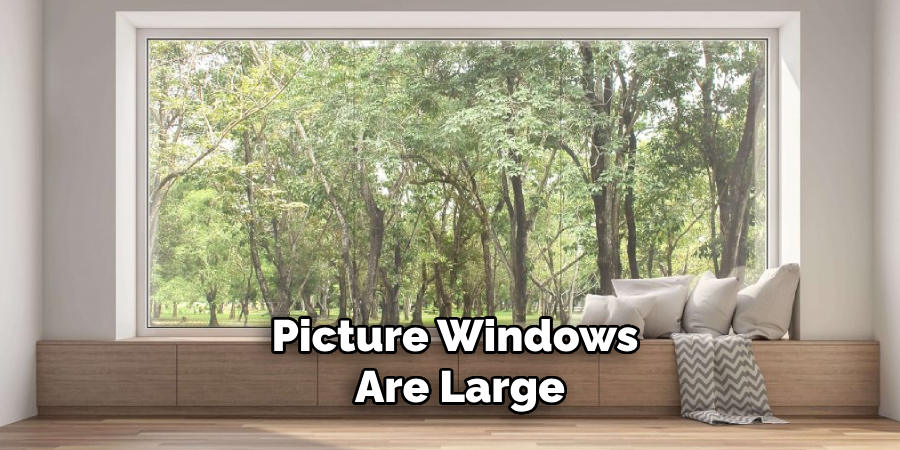

Picture windows are large, stationary windows designed to offer expansive views.
The primary measurement consideration for picture windows is structural integrity, as their size can impact the framing and support required. It’s essential to ensure that the rough opening can accommodate the weight and dimensions of a large pane of glass.
Awning Windows
Awning windows are hinged at the top and open outward from the bottom.
When measuring for awning windows, clearance above the window is crucial to allow for the window to open fully without obstruction. Additionally, because they can catch more wind and rain when open, ensure that the installation site is suitable for their operation.
In measuring for these different types of windows, always remember to factor in any additional space needed for insulation, waterproofing, and finishing materials.
Each window type may have its unique set of manufacturer recommendations for rough opening sizes and specific installation requirements, making it essential to consult with the product’s specifications closely.
By paying close attention to these details, you can ensure a successful installation that complements both the functionality and aesthetic of your new construction project.
Importance of Precise Measurements
The importance of precise measurements in the context of window installation for new construction projects cannot be overstated. Accurate measurements ensure that windows fit snugly within their designated openings, eliminating gaps that could lead to air and water infiltration, which compromises the building’s energy efficiency and can result in costly damage over time.
Beyond the practical aspects, precise measurements significantly affect the window’s performance, including its ease of operation, security features, and overall lifespan.
Incorrect measurements can lead to windows that do not open or close properly, are difficult to secure, or even windows that need to be replaced prematurely due to stress on the frame.
In essence, taking meticulous measurements is a critical step that impacts not just the aesthetics and immediate functionality of the windows but also their contribution to the building’s comfort, energy consumption, and resilience against environmental elements.
Preparing for Window Measurement
Before commencing with the measurement process for windows in a new construction project, preparation is key to ensure accuracy and efficiency. Here are several steps that construction professionals and homeowners alike should take to prepare for window measurement:
- Review Architectural Plans: Begin by consulting the architectural plans of the building. These plans should provide initial dimensions and locations for windows, serving as a guide for where measurements need to be taken.
- Gather Necessary Tools: Ensure that you have all the necessary tools for the job. A tape measure, level, notepad, and pencil are essential for taking accurate measurements. A laser measure can also be beneficial for larger windows or hard-to-reach areas.
- Clean the Area: The area where the measurements will be taken should be free of debris and obstructions. This ensures the tape measure or laser measure can lay flat against surfaces, and there’s nothing skewing the measurements.
- Understand Manufacturer Specifications: Different window manufacturers may have specific requirements for the rough opening sizes, beyond the general rule of adding 1/2″ to 3/4″ around the actual window dimensions for proper fitting. Familiarize yourself with these requirements before measuring.
- Check for Level and Plumb: Use a level to check the surfaces where the windows will be installed. Floors, walls, and opening sills should be level, and vertical supports need to be plumb. Identifying and correcting any irregularities beforehand can prevent issues during installation.
- Decide on Finishing Materials: The type of finishing materials (e.g., trim, moldings) will affect the overall dimensions needed for the window installation. Account for these materials in your measurements to ensure a seamless fit upon completion.
- Documentation: Accurately document all measurements and notes regarding each window opening. Clear labeling of each window’s location on the plans will help avoid confusion during ordering and installation.

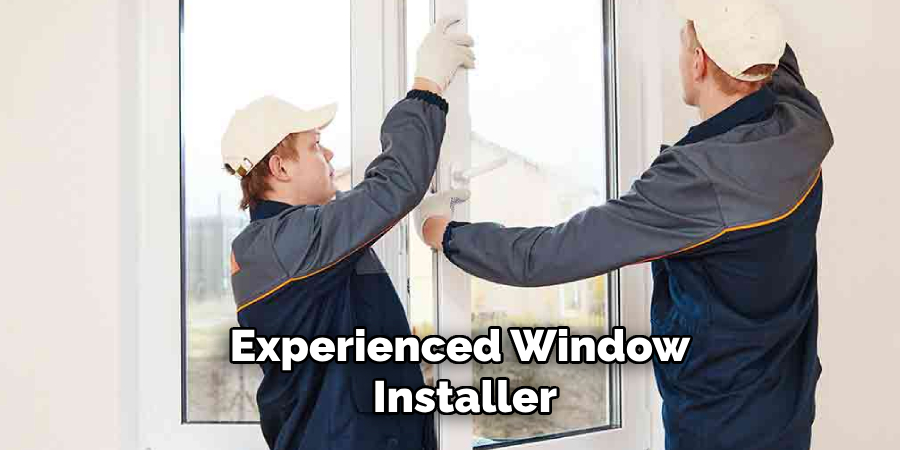

- Consult with Professionals: If possible, consult with an experienced window installer or contractor. They can offer valuable insights, particularly on complex installations like bay, bow, or custom-shaped windows.
By meticulously preparing for window measurement, you can avoid common pitfalls and ensure that each window fits perfectly, functions as intended, and enhances the building’s architectural beauty and efficiency.
Gathering Necessary Tools and Materials
For a precise and effective window measurement process, having the right tools and materials on hand is crucial. Here’s a detailed list of essentials that will facilitate accurate measurements and a smooth installation process:
- Tape Measure: A durable, flexible tape measure is indispensable for obtaining the length, width, and height dimensions of the spaces allocated for window installation.
- Level: A quality level ensures that your measurements account for any discrepancies in the plumb and levelness of the installation surfaces.
- Laser Measure: For hard-to-reach places or to ensure straight lines over long distances, a laser measure can provide accuracy and convenience.

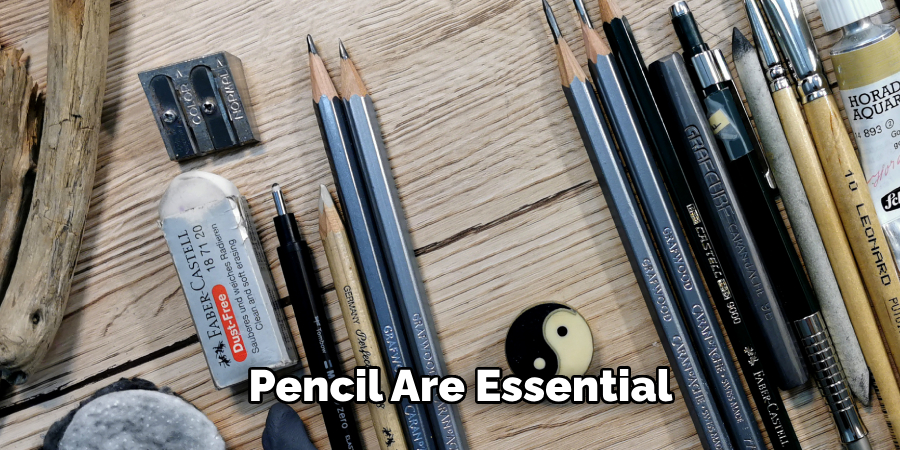

- Notepad and Pencil: Keep a notepad and pencil (or a digital device) handy to record measurements and notes about each window opening. Clear and organized documentation is key.
- Calculator: A calculator is useful for quickly adding or converting measurements, especially when working with different units or calculating areas.
- A Straight Edge or Carpenter’s Square: This tool can help ensure that your measurements account for right angles and straight lines, particularly important in the framing of new construction.
- Ladder or Step Stool: When measuring windows that are above ground level, a stable ladder or step stool will be necessary to reach and accurately measure these higher spaces.
- Camera or Smartphone: Taking photographs of the spaces to be measured and the surrounding areas can aid in later consultations with window suppliers or installers.
- Manufacturer’s Specification Sheets: Having access to the window manufacturer’s specification sheets during measurement can save time and ensure that all necessary guidelines are followed for each specific product.

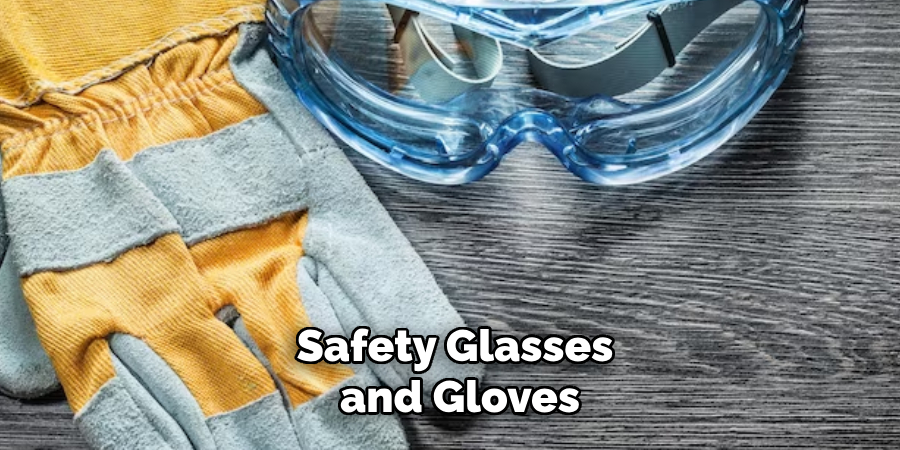

- Protective Gear: Safety glasses and gloves can protect against dust and debris, especially in new construction environments where surfaces may not yet be finished.
Gathering these tools and materials before beginning the measurement process will prepare you for a wide range of scenarios, ensuring that your measurements are precise and that the windows selected will fit perfectly within the structure’s openings. This preparation lays the groundwork for the successful integration of windows into the building, enhancing both its aesthetic appeal and functionality.
10 Methods How to Measure for Windows New Construction
01.Determine the Window Style and Configuration:
Before taking any measurements, it’s essential to decide on the style and configuration of the windows you plan to install. Consider factors such as the desired operability (e.g., fixed, sliding, or casement), size, shape, and orientation to ensure that the windows meet your functional and aesthetic requirements.
02.Measure the Rough Opening Dimensions:

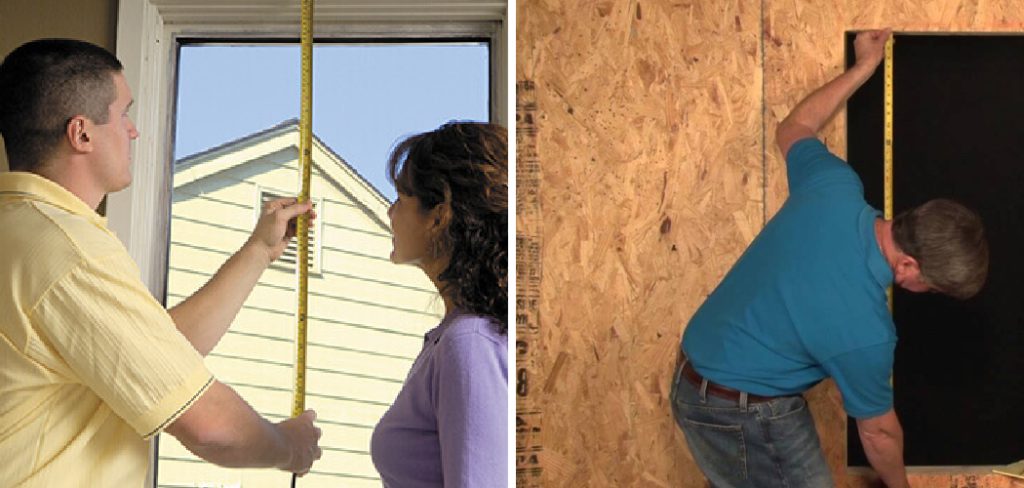

Start by measuring the width and height of the rough opening where the window will be installed. Use a tape measure to measure from the inside of the framing members on each side of the opening, ensuring accuracy to the nearest 1/8 inch. Record these dimensions as the rough opening width and height.
03.Account for Rough Opening Allowances:
When measuring the rough opening, it’s essential to account for any allowances needed for shimming, leveling, and insulation. Typically, add 1/2 to 3/4 inch to both the width and height of the rough opening to accommodate these factors and ensure a proper fit for the window frame.
04.Check for Plumb, Level, and Square:

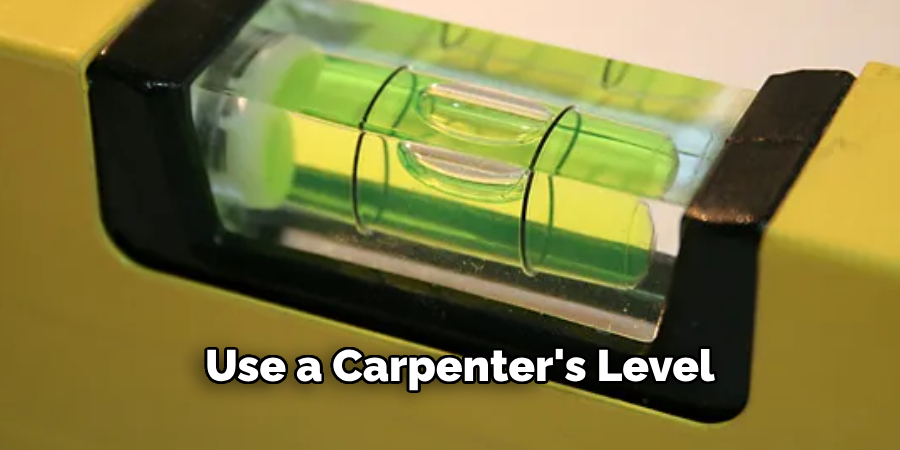

Before proceeding with measurements, verify that the rough opening is plumb, level, and square. Use a carpenter’s level and framing square to check for vertical and horizontal alignment, as well as squareness of the corners. Correct any discrepancies before taking final measurements to ensure the window will fit properly.
05.Measure the Sill Height:
Determine the desired sill height for the window based on factors such as accessibility, sightlines, and architectural considerations. Measure the distance from the finished floor to the bottom of the rough opening to determine the sill height for the new window.
06.Consider Header and Sill Slopes:
In areas prone to moisture intrusion, such as bathrooms and kitchens, consider incorporating slopes into the header and sill of the rough opening to facilitate water drainage. Measure and plan for the appropriate slope to ensure proper water management and prevent potential water damage around the window.
07.Assess Framing Conditions:
Evaluate the framing conditions surrounding the rough opening, including the type and thickness of framing materials (e.g., wood studs, metal studs), as well as any obstructions or protrusions that may impact the installation process. Take note of any modifications or adjustments needed to accommodate the window frame.
08.Factor in Exterior Finishes and Trim:
Consider the thickness of exterior finishes and trim materials, such as siding, brick veneer, or stucco, when measuring for windows. Account for the depth of these materials to ensure that the window frame will sit flush with the exterior surface and provide a seamless transition between the window and surrounding finishes.
09.Double-Check Measurements for Accuracy:
Once all measurements have been taken, double-check the dimensions for accuracy and consistency. Compare the rough opening width, height, and sill height measurements to ensure they align with the specifications provided by the window manufacturer. Correct any discrepancies or errors before proceeding with window installation.
10.Consult with a Professional if Needed:
If you’re uncertain about any aspect of measuring for windows in new construction projects, don’t hesitate to consult with a professional contractor or window installation specialist. They can offer valuable guidance and expertise to ensure that the measurements are taken correctly and that the windows are installed properly, minimizing the risk of errors or complications during the construction process.
Conclusion
In conclusion, mastering the art of measuring windows for new construction is fundamental to the success of any building project.
By following the steps outlined in this guide and adhering to best practices, you can ensure precise measurements that lead to perfectly fitting windows. Accurate measurements not only contribute to the aesthetic appeal of the building but also play a critical role in energy efficiency, insulation, and overall functionality.
Additionally, avoiding common mistakes and seeking professional advice when needed will help you achieve optimal results.
Whether you’re a seasoned contractor or a DIY enthusiast, understanding the importance of proper window measurements and taking the time to measure accurately will pay dividends in the long run.
Be sure to follow all instructions on how to measure for windows new construction carefully, and always consult an expert when in doubt.
