Retaining walls serve a vital function by preventing soil erosion, supporting sloped terrain, and improving the overall aesthetics of a landscape. They are crucial in areas where the terrain needs to be stabilized to prevent movement and land slippage. However, retaining walls are frequently subjected to a range of issues that can compromise their integrity. Common problems include cracks that develop due to shifting soil or poor drainage, bowing walls from excessive pressure behind them, and erosion of the materials over time.
Understanding how to repair a retaining wall is essential to maintaining its structural integrity and preventing more significant damage. Repairing these walls involves a series of critical steps, from assessing damage and gathering appropriate tools and materials to stabilizing the wall and ensuring proper drainage systems are in place. Addressing these issues promptly can prolong the wall’s life and maintain its functionality.
Identifying Common Retaining Wall Problems
Cracks and Fissures
Cracks and fissures in retaining walls are early indicators of potential structural issues. Spotting these surface cracks involves a detailed inspection of the wall for any linear marks, separations, or breaks on the surface. Such cracks often signal underlying problems affecting the wall’s health, such as shifting soil or poor drainage conditions. These issues may lead to uneven support for the wall, causing it to crack as it adjusts to new stresses. Another common cause is settling, where the soil beneath the wall compacts unevenly, shifting the wall’s foundation and resulting in surface cracks that compromise the wall’s integrity.
Bowing or Leaning Walls
Bowing or leaning walls can be identified by visually inspecting the wall for any sections that curve inward or show signs of lateral movement. These distortions are signs of inward pressure and are serious concerns for the integrity of the wall. The primary cause of bowing is the immense lateral pressure exerted by saturated soil behind the wall, often due to inadequate drainage systems. Poor construction techniques and the absence of proper reinforcement materials can also lead to walls leaning or bowing over time. Recognizing these issues early is key to preventing significant damage and ensuring the wall remains safe and effective.
Assessing the Extent of the Damage
Visual Inspection
Conducting a thorough visual inspection is crucial in assessing the damage to a retaining wall. Begin by examining the wall for any visible signs of damage, such as cracks, tilting, or gaps between wall elements. Pay particular attention to the alignment and structure of the wall to identify any sections that may be leaning or uneven. Additionally, the foundation and base of the wall should be inspected for stability, and areas where settlement might be occurring or where the base appears to be shifting should be looked for. Identifying these issues early is essential to determine the appropriate repair strategy.
Evaluating Soil Behind the Wall
The condition of the soil behind the retaining wall plays a significant role in its overall stability. Carefully evaluate the soil for signs of erosion, high moisture levels, or excessive compactness that could be influencing wall integrity. Check if there are any areas where soil has washed away, as this could indicate erosion problems. Assess moisture levels to determine if drainage issues are present, as water accumulation can exert additional pressure on the wall. Ensuring proper soil conditions can prevent further damage and is an important step in the repair process.
Gathering Tools and Materials for Repair
Tools Needed
Successfully repairing a retaining wall requires the right set of tools. A shovel and trowel are essential for digging and applying mortar. A level is crucial for ensuring the wall or repaired sections are correctly aligned. A hammer and drill will be necessary for more robust repairs and to secure reinforcement materials. Don’t forget the appropriate safety equipment, such as gloves and safety glasses, to protect yourself while performing repairs.
Materials Needed
Having the appropriate materials on hand will facilitate efficient repairs. Mortar and concrete mix are vital for filling cracks and setting new blocks or stones in place. Gravel is necessary for creating a stable base and enhancing drainage systems. You’ll also need drainage pipes to direct water away from the wall and avoid pressure build-up. Reinforcement materials like rebar or steel rods provide added support, and wall blocks or stones are necessary if sections need replacement.
Preparing the Area for Repair
Clearing the Area Around the Wall
Before beginning repairs on a retaining wall, it is crucial to clear the area of any plants, debris, or obstacles that could impede the work process. Start by carefully removing any vegetation near the wall, taking care to preserve root systems, if possible, for replanting after repairs. Dispose of any debris, such as rocks, fallen branches, or litter that may be present. This ensures a safe and unobstructed workspace, allowing for easier access to the wall. Properly clearing the area not only aids in the repair process but also prevents potential damage to the surrounding landscape.
Digging Behind the Wall
Excavating soil from behind a retaining wall is essential, particularly if the wall displays signs of bowing or leaning. Begin by digging a trench approximately one to two feet wide along the wall’s rear, carefully removing soil to relieve pressure. This process should be done incrementally to prevent further destabilizing the wall. Make sure to only excavate as much as necessary to address the issue without compromising the wall’s foundation. Relieving soil pressure is vital to correcting the wall’s alignment and preparing a stable base for continued repairs, ultimately enhancing the wall’s longevity and effectiveness.
How to Repair a Retaining Wall: Repairing Cracks and Minor Damage
Cleaning the Cracks

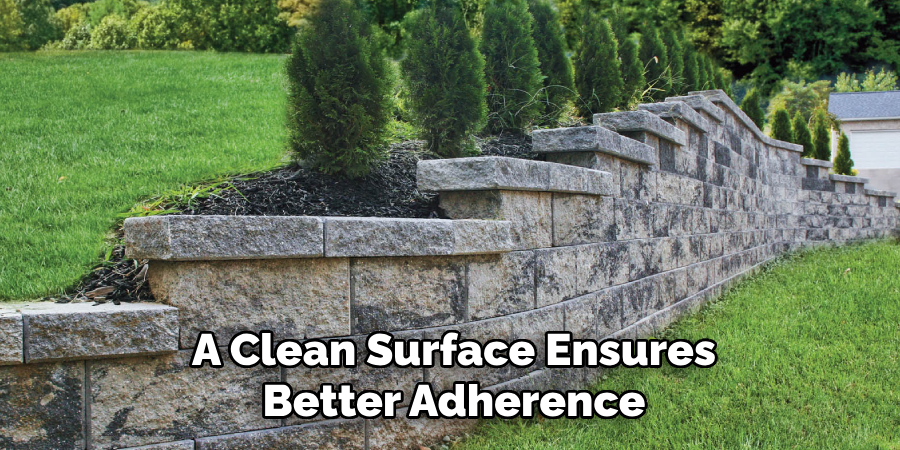

Cleaning the cracks and damaged areas of a retaining wall is a crucial first step in repairing them effectively. Begin by using a wire brush to scrub away loose debris, dirt, and any remaining fragments of the wall material. For deeper or wider cracks, a pressure washer can be employed to thoroughly clean the area and remove stubborn residues. Make sure to wear protective gear, such as gloves and safety goggles, during this process to safeguard against flying debris. A clean surface ensures better adherence to the repair materials and improves the longevity of the repair work.
Applying Concrete Patch or Mortar
After cleaning, the next step is to fill small cracks using a concrete patch or mortar. Start by mixing the patching compound or mortar according to the manufacturer’s instructions until you achieve a consistent, workable mixture. Using a trowel, carefully apply the mix into the cracks, ensuring complete filling and adherence to the surrounding wall surface. Smooth the patch over with the flat side of the trowel, pressing firmly to remove any air pockets and ensuring the repair is level with the rest of the wall. Taking the time to properly apply the patch will result in a seamless, durable finish that integrates well with the existing structure.
Reinforcing with Steel Rods or Mesh

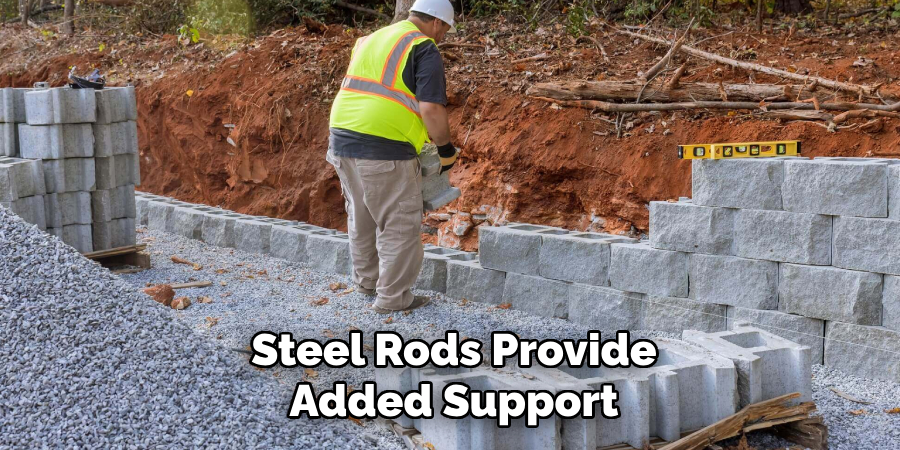

In high-stress areas or where cracks are more severe, reinforcing the repairs with steel rods or mesh can provide additional support. This reinforcement should be added before applying the final layer of patch or mortar, embedding it within the repair to enhance strength and stability. Proper reinforcement ensures the wall can better withstand future stresses.
How to Repair a Retaining Wall: Repairing Bowed or Leaning Walls
Straightening the Wall
To correct a leaning or bowed retaining wall, several techniques can be employed. Wall anchors can be installed to secure and gradually pull the wall back into its upright position. Alternatively, hydraulic jacks can be used to gently push the wall back into alignment. Another effective method is the use of braces, which provide lateral support and stability while the wall is repositioned. Once the wall is straightened, steel rods or rebar can be added to reinforce the structure, offering additional support to withstand future stresses and maintain vertical integrity.
Improving Drainage
Addressing drainage issues is critical when repairing bowed or leaning walls. Installing or replacing drainage pipes can help channel water away, reducing pressure behind the wall. Incorporating gravel backfill enhances drainage by allowing water to flow through and away from the wall foundation. Additionally, implementing French drains can efficiently manage water runoff and prevent accumulation. Poor drainage often leads to increased hydrostatic pressure, a major factor in causing walls to lean or bow. By improving drainage, the likelihood of further wall damage is significantly reduced.
Rebuilding Sections
Replacing or rebuilding sections may be necessary in cases where the wall damage is extensive. Using suitable materials, such as durable wall blocks or stones, ensures that the repaired or replaced sections integrate seamlessly with the remaining structure. Rebuilding with proper techniques and materials not only restores stability but also prolongs the wall’s lifespan.
Installing or Replacing Drainage Systems
The Role of Proper Drainage in Wall Stability
Proper drainage is crucial in maintaining the stability of a retaining wall, as water buildup behind the wall can lead to several issues, such as erosion, shifting, and bowing. When the water accumulates, it increases hydrostatic pressure, which can push the wall forward and eventually cause structural failures. Implementing effective drainage systems minimizes these risks, ensuring the wall remains stable and durable over time.
How to Install Drainage Pipe and Gravel

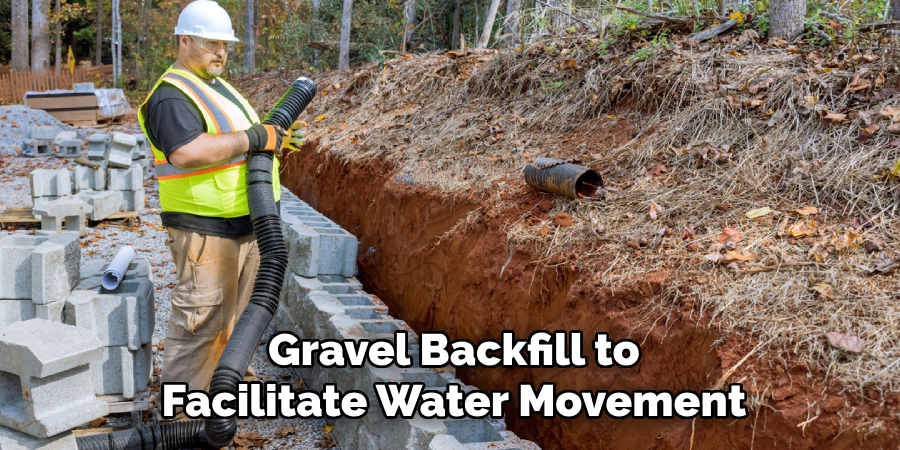

Installing drainage pipes is essential in preventing water accumulation behind the wall. Begin by laying perforated drainage pipes parallel to the wall’s base, angling them slightly downwards so that water flows away efficiently. Cover the pipes with a layer of gravel or other permeable materials to facilitate water movement and prevent debris from clogging the system. This setup helps manage water flow, reduce pressure, and protect the wall from future damage.
Finishing the Repair
Replacing Wall Blocks or Stones

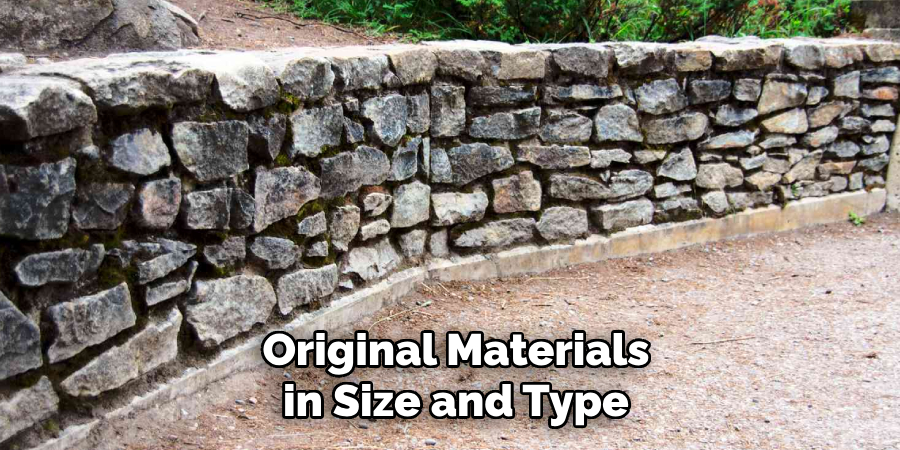

When replacing individual blocks or stones that have cracked or become dislodged, carefully remove the damaged pieces, ensuring minimal disturbance to the surrounding structure. Select replacement blocks that match the original materials in size and type. Align the new blocks properly with adjacent ones, ensuring a snug fit. Use a level to confirm horizontal alignment, adjusting as needed for precision. Secure the blocks using fresh mortar, applying it evenly to achieve a stable and cohesive bond with the existing wall.
Sealing and Curing the Wall
To enhance the durability of the repairs, apply a suitable sealant over the repaired sections. The sealant acts as a protective barrier against moisture penetration and environmental wear. Ensure even coverage for optimal protection. Follow the manufacturer’s recommended timeframe for allowing sufficient curing time for any mortar, concrete, or other repair materials. Proper curing ensures that the materials are fully strengthened, providing a long-lasting finish that maintains the wall’s integrity.
Preventing Future Damage to the Retaining Wall
Maintaining Proper Drainage
Regularly inspect and maintain the drainage system behind the wall to ensure water doesn’t accumulate and cause damage. Ensure that drainage pipes remain unclogged and functional, allowing water to flow freely away from the wall. Clear any debris or sediment that might obstruct water passage, and if needed, install gravel backfill to facilitate water movement and alleviate hydrostatic pressure, thereby protecting the wall’s stability over time.
Regular Inspections and Upkeep
Scheduling periodic inspections for cracks, shifts, or other signs of stress is crucial in extending the lifespan of the retaining wall. During these inspections, check the integrity of the wall and identify any emerging issues early. To prevent these issues from escalating, perform small repairs as needed, such as filling minor cracks or resealing joints. Regular upkeep ensures the wall remains strong and continues to function effectively in supporting the surrounding landscape.
Conclusion
Repairing a retaining wall involves several critical steps: assessing the damage, gathering necessary materials, repairing any cracks or bowing, ensuring proper drainage, and finishing with sealing and curing. Regular maintenance, like inspecting for issues and keeping the drainage system functional, is vital for the wall’s longevity. By following these steps and knowing “how to repair a retaining wall,” homeowners can maintain stability and appearance. For large or complex repairs, especially when the wall is significantly damaged, seeking professional assistance is encouraged to ensure safety and effectiveness in the repair process.
