Locating pipes within walls is a crucial skill for both homeowners and professionals, aiding in safe drilling, renovation, and repair processes. Understanding the placement and routing of pipes can prevent accidental damage, such as punctures or leaks, that could lead to costly repairs.
This guide on how to locate pipes in walls will walk through various methods and tools available to help detect pipes behind walls, ensuring any home improvement project proceeds smoothly and confidently. With the right approach, you can effectively safeguard your home and investment from potential plumbing mishaps.
Why Locate Pipes in Walls?
As mentioned, locating pipes within walls is essential for safe renovation and repair work. However, there are other reasons why knowing the location of pipes in your home is vital.
Prevent Costly Damage:
Drilling or nailing into a wall without knowledge of the pipe placement could result in punctures, leading to water damage, mold growth, and costly repairs. By accurately locating pipes, you can avoid these potential hazards.
Ensure Proper Installation:
Knowing the location of pipes during renovation or new construction allows for proper planning and installation. This ensures that piping systems are correctly routed and connected, avoiding potential plumbing issues in the future.
Identify Potential Problems:
Locating pipes also enables homeowners to identify any potential problems, such as clogs or blockages, before they become major issues. This proactive approach can save time and money on repairs in the long run.
Needed Materials
Before beginning the process of locating pipes in walls, it is essential to gather the necessary tools and materials. These may include:
Stud Finder:

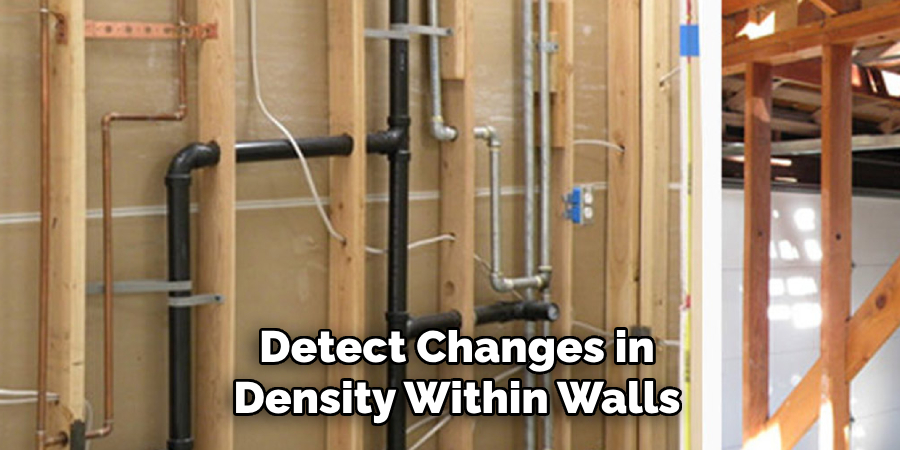

A stud finder is a handheld device that uses sensors to detect changes in density within walls, helping locate pipes and other structural elements.
Pipe Locator:
Specialized pipe locators use electromagnetic signals to find metallic or plastic pipes behind walls. These devices are available for purchase or can be rented from hardware stores.
Endoscope:
An endoscope is a small camera attached to a flexible tube that can be inserted into wall cavities to view the inside and locate pipes.
8 Methods on How to Locate Pipes in Walls
Step 1: Check Building Plans
The first step in locating pipes within walls is to consult the building plans of your property. Building plans or blueprints provide detailed layouts of the plumbing system and are an invaluable resource in identifying where pipes are likely to be located. These plans typically include information about pipe placements, sizes, and materials used, which can greatly assist in narrowing down the search area. If you do not have access to the building plans, you may be able to obtain them from your local municipal building department.
Reviewing these documents will not only help in pinpointing the location of pipes but will also provide insight into the overall structure of your home, facilitating safer and more efficient renovations or repairs.
Step 2: Look for Pipe Outlets and Water Sources
Another simple yet effective method is to check for pipe outlets, such as faucets, showerheads, and other water sources, as these indicate the presence of pipes. By tracing these outlets back to their source, you can get a general idea of where pipes may be routed within walls.

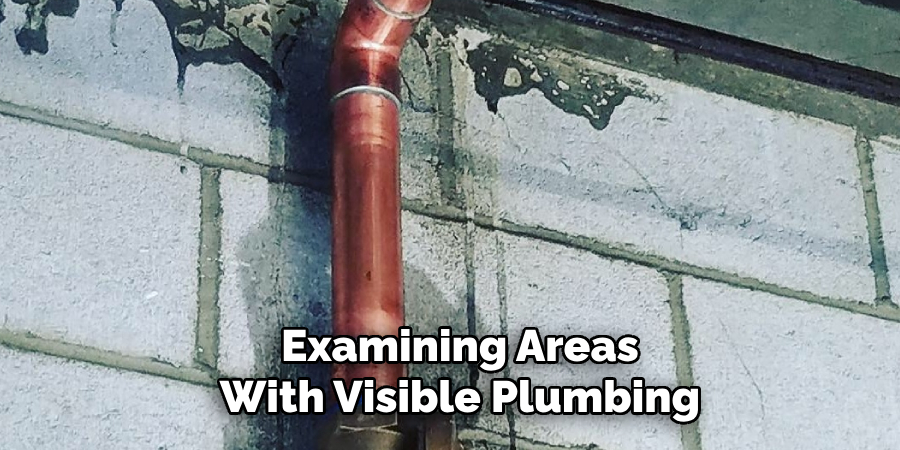

Additionally, examining areas with visible plumbing, such as under sinks in basements or crawl spaces, can also provide helpful clues.
Step 3: Listen for Running Water
Listening to the sound of running water is a practical method to locate pipes within walls, especially in scenarios where visual cues are limited. To begin, ensure the plumbing system is in use by turning on a faucet or any water outlet. Stand close to the wall where you suspect pipes might be and listen carefully for the sound of water flowing, which often indicates the presence of plumbing beneath the surface.
This technique can be particularly effective in quiet environments, allowing you to track the flow and estimate the path of the pipes. Keep in mind that the sound may vary depending on pipe material and water pressure, so it’s beneficial to move around and compare areas for consistent auditory feedback.
Step 4: Use a Stud Finder
As mentioned earlier, stud finders are useful devices for detecting changes in wall density and can help locate pipes. Begin by calibrating the stud finder according to the manufacturer’s instructions.
Then, move the device along the wall, listening for beeping signals or observing visual indicators that show when it comes across a change in density. This could indicate the presence of pipes, especially if they are made of metal.
Step 5: Try a Pipe Locator
For more accurate results, consider using a specialized pipe locator. These devices use electromagnetic signals to detect metallic or plastic pipes behind walls. They are generally more expensive than stud finders but provide more precise readings.

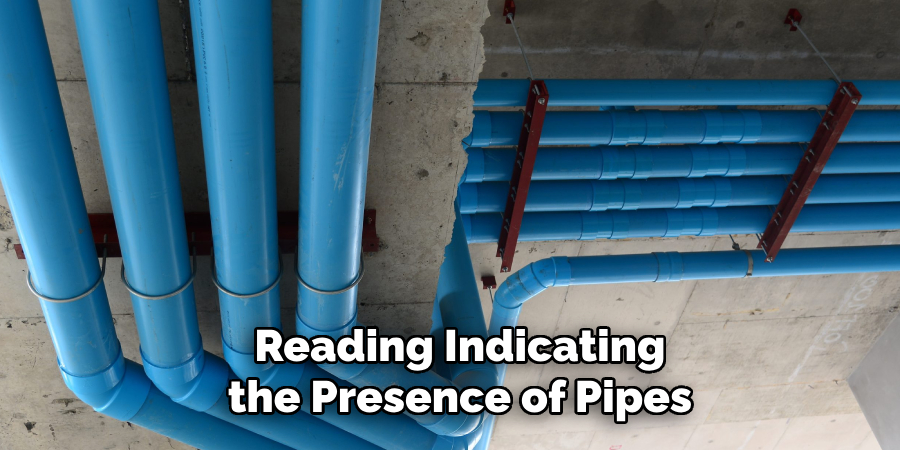

Follow the manufacturer’s instructions to calibrate and use the device, slowly scanning the wall in a grid-like pattern until you get a reading indicating the presence of pipes.
Step 6: Utilize an Endoscope
An endoscope is a small camera attached to a flexible tube, often used in medical procedures, but also useful for locating pipes in walls. Insert the camera into wall cavities through small holes or openings, and view the live feed on a monitor or your smartphone. This method can be particularly helpful when dealing with complex plumbing systems that may have twists and turns within the walls.
The downside to using an endoscope is that it requires creating holes in the wall, so it’s best used as a last resort when other methods have failed.
Step 7: Consider Thermal Imaging
Thermal imaging technology uses infrared radiation to detect temperature variations within walls. Since pipe systems often carry water at a different temperature than the surrounding wall, it can be possible to see an outline of pipes on a thermal image.
This method may not always provide accurate results, especially if the pipes are insulated or have similar temperature levels as the surrounding materials. It’s best used in combination with other techniques for better accuracy.
Step 8: Seek Professional Help
If all else fails, it may be time to call in a professional plumber or building contractor. These experts have access to specialized equipment and techniques that can accurately locate pipes within walls without causing damage. While this may be a more expensive option, it could save you time and money in the long run by avoiding potential mistakes or accidents. Additionally, they may also be able to offer advice and solutions for any potential plumbing issues discovered during the process.

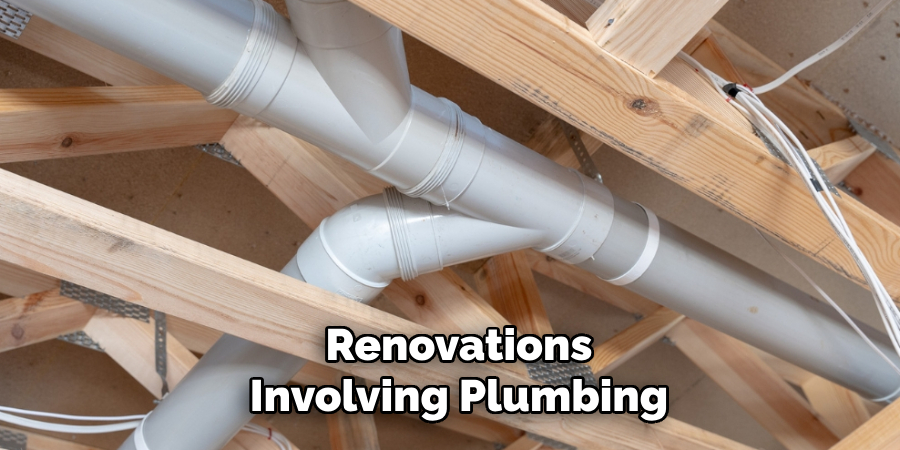

Following these methods on how to locate pipes in walls can help you locate pipes within walls and gain a better understanding of your plumbing system. Remember to always prioritize safety and use caution when attempting DIY repairs or renovations involving plumbing. When in doubt, seek professional assistance for accurate results and peace of mind. Repeat this step as necessary until all relevant information has been covered.
Additional Tips for Pipe Location
- If you have access to the attic or crawl space above the walls in question, consider inspecting the plumbing from above for better visibility.
- Pay attention to any unusual smells or signs of water damage on walls, as these could indicate a leaky pipe behind them.
- In older homes, pipes may be located in unexpected areas due to renovations or changes in building codes over time.
- Keep track of where pipes are located for future reference and to avoid damaging them during future repairs or renovations.
- Remember to always turn off the main water supply before attempting any work on plumbing systems.
- If you are unsure about locating pipes, it’s best to consult a professional rather than risk damage to your home or injuries.
- Regularly inspect your home for potential plumbing issues, such as leaks or corrosion, as catching them early can save you time and money in the long run.
- Consider investing in pipe insulation to prevent freezing during colder months and reduce energy costs.
- Keep a record of any maintenance or repairs done on your plumbing system, including the location of pipes and fixtures, for future reference.
- In case of emergency, locate the main water shut-off valve in your home and make sure all household members know its location.
- Properly insulate your pipes to prevent them from freezing or bursting during extreme weather conditions.
- Regularly check for potential signs of damage to pipes, such as discoloration or rusting, and address any issues promptly.
Conclusion
Locating pipes within walls can seem like a daunting task, but by using these methods and techniques, you can effectively narrow down the search area and locate them with accuracy. Remember to always exercise caution when drilling or making holes in wall cavities and seek professional help when necessary.
With proper knowledge and tools, you can confidently navigate your plumbing system and address any potential issues that may arise. So, be proactive in maintaining your home’s plumbing to avoid any major problems down the road. Thanks for reading this article on how to locate pipes in walls.
